image square Drill Glue and Dowel Machine
Index

CNC drill and dowel inserting machine for fully automatic bore, glue and dowel driving.
The drill glue and dowel machining center with compactness, efficiency, quality and flexibility.

Drill Glue and Dowel Machine - GANNOMAT Index
Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

image red line

image info button Options

image info button Standard unit
Drill Glue and Dowel Machine - GANNOMAT Index - Options   The standard unit is equipped for drilling, gluing and dowel driving.

image info button Modification-kit (change over kit) for additional dowel dimensions
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Standard:
Diameter Ø 8 mm
Length 25-50 mm
Outstanding dowel length projection 7-20 mm

Option:
Diameter Ø 6, 10, 12 mm
Length 60 mm
Outstanding dowel length projection 7-30 mm

image info button Some possible options for machine type: Index Logic

image info button Vertical drilling unit from top
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Single vertical drilling unit from top for face drilling.
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Drilling of half-open RTA fittings (e.g. Häfele shelf connector Rafix TAB).
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Drilling for eccentric RTA fittings (e.g. Häfele Minifix) with drilling of vertical and horizontal holes.

Dowel holes can reinforce the connection yet.
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Eccentric RTA fitting Minifix in combination with dowels.
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Vertical face drilled dowel holes, e.g. for drawerparts or cabinet side gables.

image info button Horizontal clamping device
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Horizontal clamping device for face drilling of small workpieces, vertically clamped.

image info button Frame processing: Frames
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Processing of stiles and frames.

image info button Frame processing: Mitred frames
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Processing of mitred frames.

image info button Some possible options for machine type: Index Trend

image info button 2nd horizontal single spindle drilling unit
Drill Glue and Dowel Machine - GANNOMAT Index - Options   2nd horizontal single spindle drilling unit for processing of 2 different drilling diamters.

image info button 2nd gluing and doweling unit
Drill Glue and Dowel Machine - GANNOMAT Index - Options   2nd gluing and doweling unit for processing of 2 different dowel diamters.

image info button Pocket screw unit (pocket hole joinery)
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Additional pocket screw unit with pocket routing unit and drilling unit for pilot holes for screws.

For example applicable at face frames, cabinet parts such as shelves and side panels etc. at the pocket hole joinery.

image info button Some possible options for machine type: Index Pro

image info button Multi spindle drill head with single selectable drilling spindles
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Massive horizontal and vertical multi spindle drill head with 3, 5, 7 or more single selectable drilling spindles.
Bohr- und Dübeleintreibmaschine - GANNOMAT Index - Optionen   Drilling and inserting of Lamello Cabineo.

Link >Lamello @ GANNOMAT<

image info button Vertical grooving saw
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Vertical grooving saw for backsides.

image info button Horizontal grooving saw
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Horizontal grooving saw for slotting or also useable for wooden biscuits as well as for Lamello.
CNC Bearbeitungszentrum - GANNOMAT Index - Optionen   Routing of Lamello P-System pockets for Clamex, Clamex Flexus, Tenso, Bisco, Divario.

Link >Lamello @ GANNOMAT<

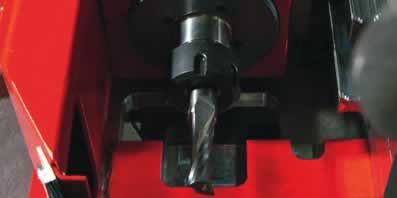

image info button Routing unit
Drill Glue and Dowel Machine - GANNOMAT Index - Options   Routing units for various applications.
KV dovetail connector system   Routing of KV dovetail connectors (KV Keilverbinder).

Link >KV dovetail connector @ GANNOMAT<

image info button Further options are available according to your requirement
