image square Framedrilling- and Mortisingmachine
Junior 323

Universal solid wood boring machine for frames and horizontal mortiser.


Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

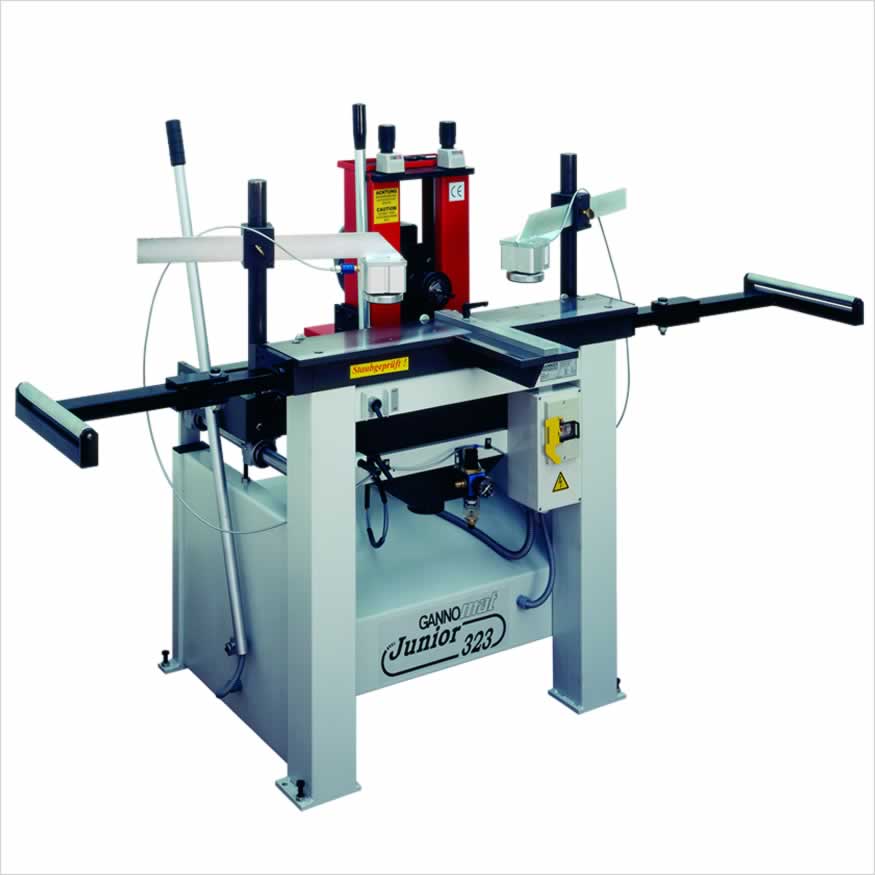

Framedrilling- and Mortisingmachine - GANNOMAT Junior 323

image red line

Short introduction:

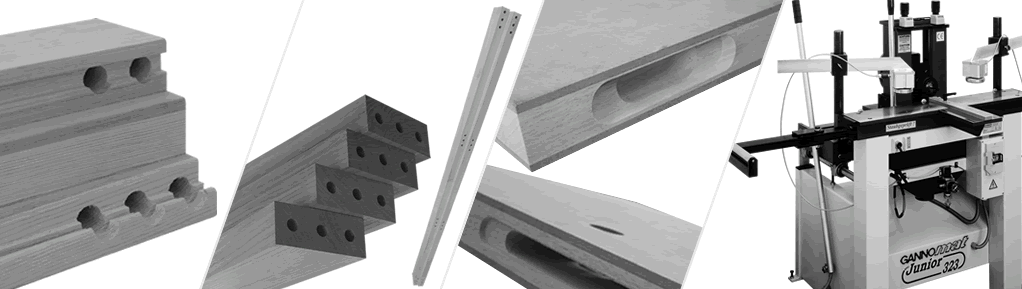

Universal application: frames, entry doors, windows, as well as useable as horizontal mortiser, ...
Drilling depth up to 150 mm (larger drilling depths optional)
Pneumatical position height adjustment for 2 levels 0 - 100 mm, adjustable through mechanical digital counters
Drilling in two height positions at a single workpiece clamping position
Pneumatic clamping cylinders
Multi spindle drillheads (option)
Pneumatic feed (option)
Mobil through castors (option) or with pallet trucks
