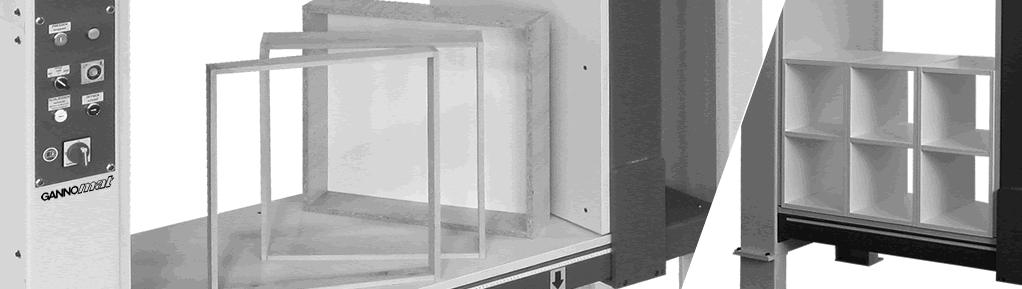

image square Case Clamp
Concept Easy

The Concept Easy is the ideal assembly support for dowel construction at the case goods production as well as at drawer production.


Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

Case Clamp - GANNOMAT Concept Easy

image red line

Short introduction:
Small footprint requirement, less than 1,8 m2
Potentiometer for stepless adjustable pressing force
Pressing force min. 300 daN (kg)
Pressing force max. 2200 daN (kg)
3 Pressing velocities and adjustment rates
5 /10 / 25 mm/sec. (with fine positioning / creep feed)
Adjustable clamping cycle time with automatic opening
