image square Framedrilling- and Staircasedrilling- and Mortisingmachine

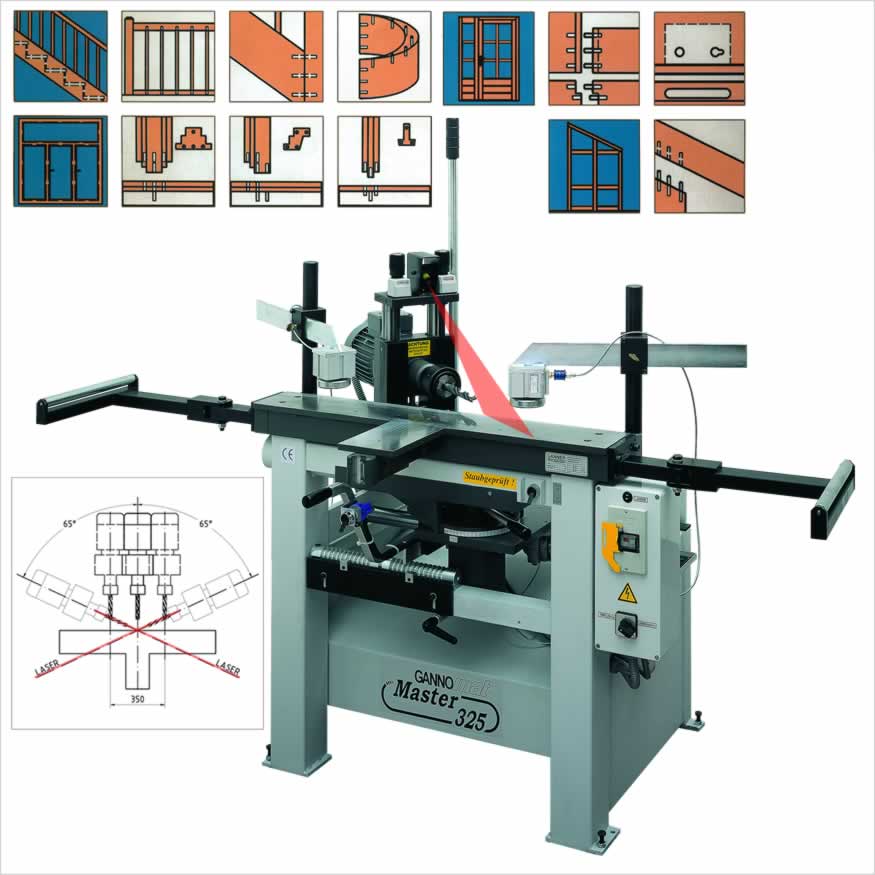

Master 325

Universal solid wood boring machine with stepless turnable drilling unit for universal applications like e.g. staircases, entry doors, windows, winter gardens as well as useable as horizontal mortiser.


Presentation image info button
Features and Benefits image info button
Options image info button
Video image info button
Configurator and Contact image info button

Framedrilling- and Staircasedrilling- and Mortisingmachine - GANNOMAT Master 325

Treppen-, Rahmendübel- und Langlochbohrmaschine - GANNOMAT Master 325

image red line

Short introduction:

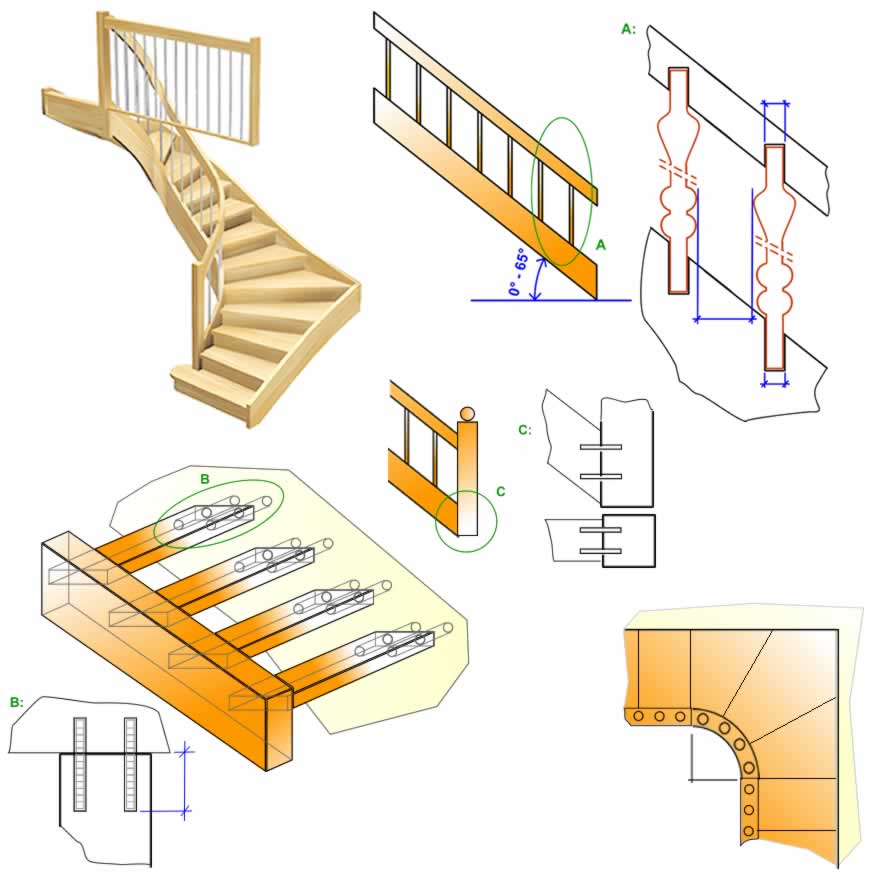

Universal application: staircases, frames, entry doors, windows, winter gardens as well as useable as horizontal mortiser, ...
Steppless turnable drilling unit: 65° - 0 - 65°
Drilling depth up to 200 mm (larger drilling depths optional)
Position height adjustment for 2 levels, pneumatically, 0 - 100 mm
Drilling in two levels through pneumatic raising and lowering of the drilling motor at a single workpiece clamping position
Pneumatic clamping cylinders
Multi spindle drillheads (option)
Pneumatic feed (option)
Mobil through castors (option) or with pallet trucks
